Waveguides

In a microwave system, waveguide helps to efficiently transmit microwave energy from the source to the load. A waveguide size is primarily dependent on the wave frequency and mode of propagation. At Enerzi Microwave systems we manufacture rectangular waveguides, launchers, isolators, E & H bend waveguides, transistion pieces, three-stub tuners etc conforming to international standards supporting 2450MHz. Based on your requirement, we manufacture waveguides in Stainless-steel, Aluminium and Brass. We also develop customized waveguides.

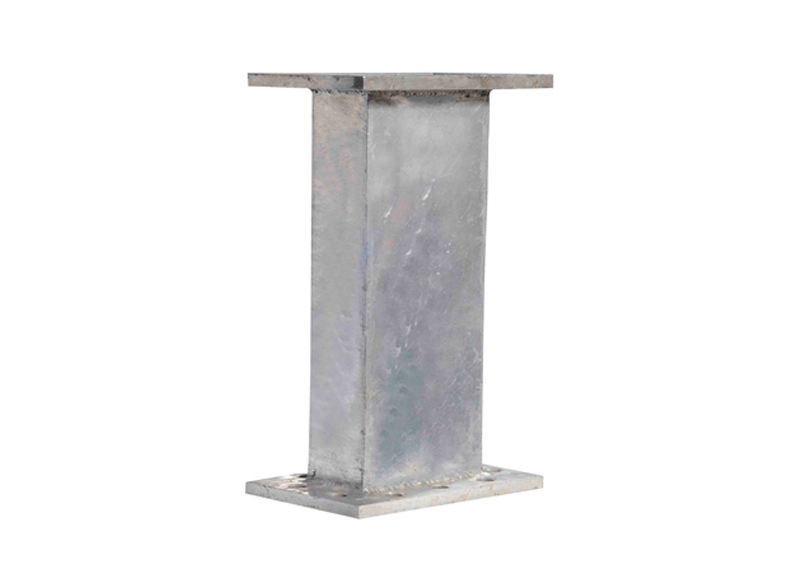

Launcher Waveguide


Model Number STANDARD METAL TYPE
CWE-S-340 WR340 STAINLESS STEEL
CWE-A-340 WR340 ALUMINIUM
CWE-B-340 WR340 BRASS
CWE-S-430 WR430 STAINLESS STEEL
CWE-A-430 WR430 ALUMINIUM
CWE-B-430 WR430 BRASS
CWE-S-284 WR284 STAINLESS STEEL
CWE-A-284 WR284 ALUMINIUM
CWE-B-284 WR284 BRASS


Launcher Waveguide


Model Number STANDARD METAL TYPE
CWE-S-340 WR340 STAINLESS STEEL
CWE-A-340 WR340 ALUMINIUM
CWE-B-340 WR340 BRASS
CWE-S-430 WR430 STAINLESS STEEL
CWE-A-430 WR430 ALUMINIUM
CWE-B-430 WR430 BRASS
CWE-S-284 WR284 STAINLESS STEEL
CWE-A-284 WR284 ALUMINIUM
CWE-B-284 WR284 BRASS

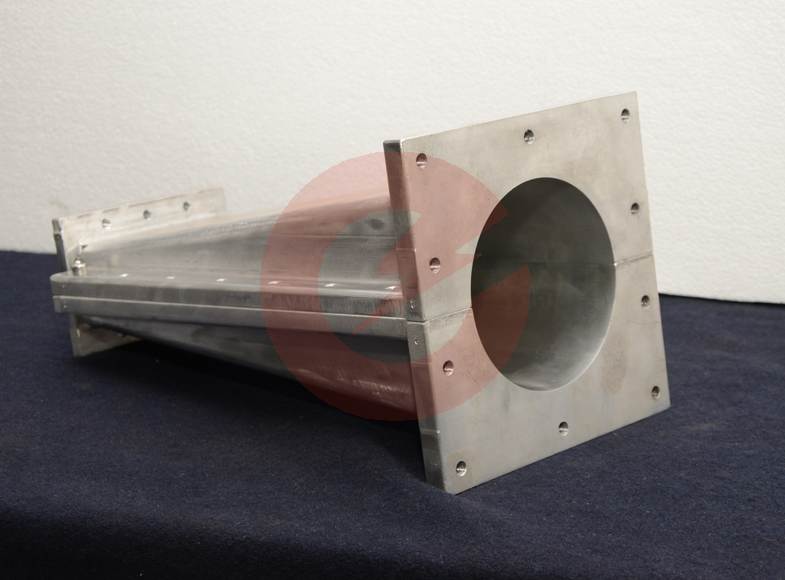

Straight Waveguide


MODEL NO. STANDARD MATERIAL TYPE
CWG-S-340 WR340 STAINLESS STEEL
CWG-A-340 WR340 ALUMINIUM
CWG-B-340 WR340 BRASS
CWG-S-430 WR430 STAINLESS STEEL
CWG-A-430 WR430 ALUMINIUM
CWG-B-430 WR430 BRASS
CWG-S-284 WR284 STAINLESS STEEL
CWG-A-284 WR284 ALUMINIUM
CWG-B-284 WR284 BRASS

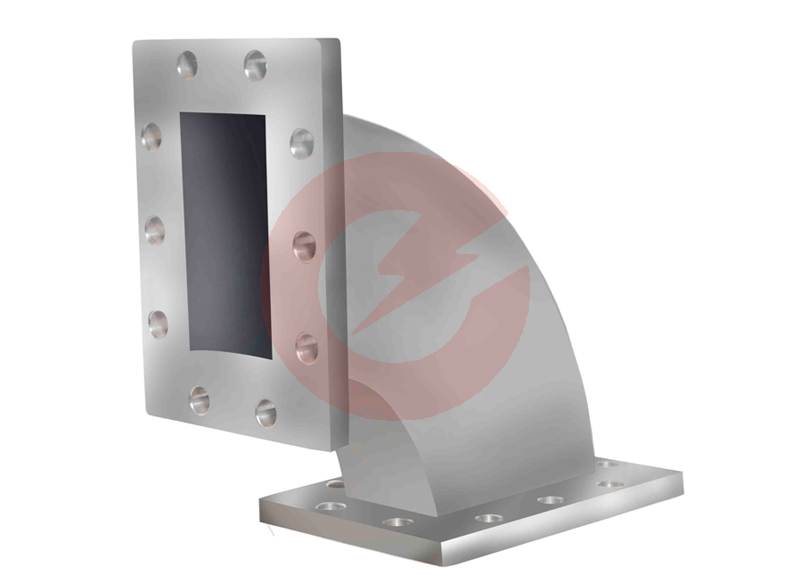

Waveguide – H Bend


MODEL NO. STANDARD MATERIAL TYPE
CWH-S-340 WR340 STAINLESS STEEL
CWH-A-340 WR340 ALUMINIUM
CWH-B-340 WR340 BRASS
CWH-S-430 WR430 STAINLESS STEEL
CWH-A-430 WR430 ALUMINIUM
CWH-B-430 WR430 BRASS
CWH-S-284 WR284 STAINLESS STEEL
CWH-A-284 WR284 ALUMINIUM
CWH-B-284 WR284 BRASS

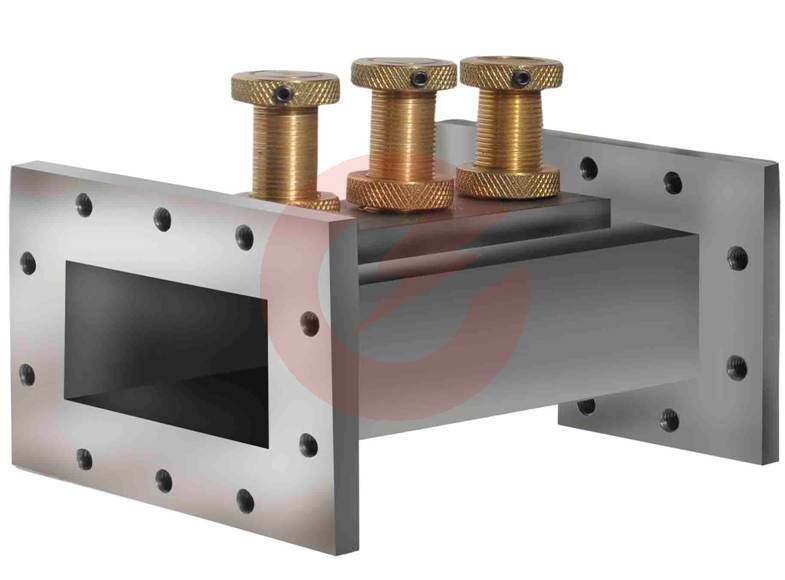

Waveguide – Three Stub Tuner


MODEL NO. STANDARD MATERIAL TYPE
C3ST-S-340 WR340 STAINLESS STEEL
C3ST-A-340 WR340 ALUMINIUM
C3ST-B-340 WR340 BRASS
C3ST-S-430 WR430 STAINLESS STEEL
C3ST-A-430 WR430 ALUMINIUM
C3ST-B-430 WR430 BRASS
C3ST-S-284 WR284 STAINLESS STEEL
C3ST-A-284 WR284 ALUMINIUM
C3ST-B-284 WR284 BRASS

Waveguide – Isolator


MODEL NO. STANDARD MATERIAL TYPE
ISO-S-340 WR340 STAINLESS STEEL
ISO-A-340 WR340 ALUMINIUM
ISO-B-340 WR340 BRASS
ISO-S-430 WR430 STAINLESS STEEL
ISO-A-430 WR430 ALUMINIUM
ISO-B-430 WR430 BRASS
ISO-S-284 WR284 STAINLESS STEEL
ISO-A-284 WR284 ALUMINIUM
ISO-B-284 WR284 BRASS


Dual Directional Coupler


Model Number STANDARD METAL TYPE
DDC-S-340 WR340 STAINLESS STEEL
DDC-A-340 WR340 ALUMINIUM
DDC-B-340 WR340 BRASS
DDC-S-430 WR430 STAINLESS STEEL
DDC-A-430 WR430 ALUMINIUM
DDC-B-430 WR430 BRASS
DDC-S-284 WR284 STAINLESS STEEL
DDC-A-284 WR284 ALUMINIUM
DDC-B-284 WR284 BRASS


Magnetrons & MW Heads


Model Number POWER RATING COOLING SYSTEM
EMS-MAG-008-1 0.8KV AIR COOLED
EMS-MAG-012-1 1.2KV AIR COOLED
EMS-MAG-015-1 1.45KV AIR COOLED
EMS-MAG-020-1 2.0KV AIR COOLED
EMS-MAG-030-1 3.0KV AIR / WATER COOLED
